Main power 630kW brings the capacity of 90 t/h （Largest pellet mill in Asia）

Intelligent:

• Intelligent bearing temperature measurement device monitors the temperature of the transmission system real time and fault warning;


• External thin oil circulation cooling system lubricates and cools the temperature of the main transmission bearings;


• The automatic grease lubrication system can add grease at fixed times and in fixed quantities without stopping the machine;


• Electric mold roller lifting device to improve the disassembly and assembly efficiency of components such as ring dies and rollers;


• Electric cutter adjustment mechanism automatically adjusts the pellets length through the touch screen;


• One click start stop, automatic stop when no material, automated production, one person can control multiple machine;


• Automatic load control system achieves stable operation at high loads;

• Quality optimization system achieves automatic addition moisture to conditioning system, controlling the moisture content of products.

Safe and Hygienic:

• Access control security system to prevent injury caused by operation hazards;


• Stainless steel material with sandblasting treatment of internal parts in contact with materials, which is enviro-friendly and hygienic;


• Feeding chute with strong magnetic iron removal device prevents iron impurities from into the chamber may cause damage to ring die;


• Feeding chute with an air motor for external discharge and an anti blocking alarm device, achieve automatic discharge when blocked;


• Door cover is made of 304 stainless steel arc structure, nice look and reduce dead corner material accumulation.


Stable and Efficient:

• Adopting a single level gear transmission mechanism, the efficiency is higher than other transmission forms;


• Adopting helical gear design, high-strength forged alloy steel, with high load-bearing capacity and long service life;


• The transmission system adopts imported branded bearings with high safety design, more stable operation;


• Adopting precision grinding and gear surface modification treatment, with low noise and higher transmission efficiency;


• Ring die with special clamp structure is designed to increase the efficiency of the disassembly and assembly.

Details

• SZLH1208 Ring-Die Pellet Mill: Features a ring die inner diameter of 1208 mm, a rated power of 630 kW, and a production

  capacity of 50–65 t/h for poultry feed.

• Market Launch and Application Date: December 2024.

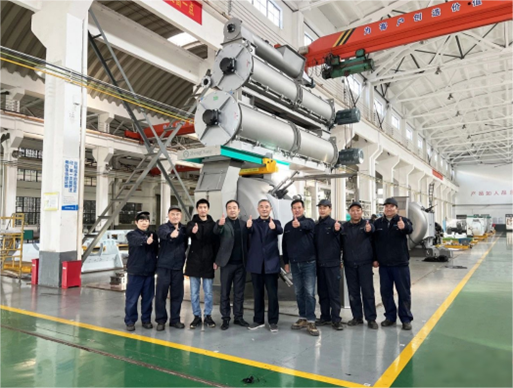

• The Zhengchang SZLH1208 pellet mill achieves a production capacity of up to 65 t/h when processing poultry feed. The equipment

  is driven by a permanent magnet synchronous motor, offering superior transmission efficiency boosting energy efficiency by 10% and

  ensuring energy saving, eco-friendly operation. It is equipped with a pneumatic system for automatic adjustment of the die roller gap;

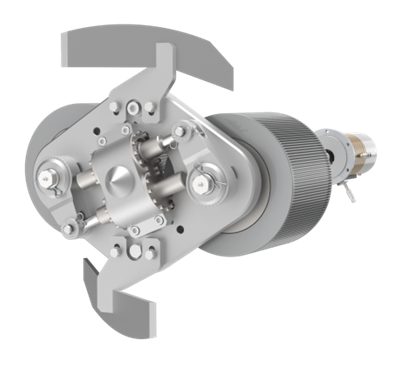

  by precisely monitoring the speed of the press rollers, this system enables synchronized control of the die roller assembly, thereby

  effectively minimizing the risk of machine clogging. The cutter system utilizes servo control, allowing for precise, on-line, and remote

  adjustments. The transmission system features temperature monitoring for critical bearings and vibration spectrum analysis; via an

  integrated fault diagnosis system, it can proactively assess the equipment's operational status to provide early warnings of potential

  malfunctions. The ring-die employs a quick-release clamp structure, while the die-fixing mechanism utilizes a self-positioning,

  rapid-clamping device, enabling quick and easy installation and removal of the ring-die.

• Compared to existing products, this model delivers a 10% increase in efficiency. It incorporates a suite of automated features including

  the pneumatic die roller gap adjustment system, servo controlled cutter system, automatic grease lubrication system,

  and critical bearing temperature/vibration monitoring while featuring a quick disassembly structure for the ring-die and an electric auxiliary hoisting device, all of which significantly enhance the equipment's overall operability.
